RDP Series
| Operating pressure | 16 / 14 bar |
| MODEL | Air flow | Operating pressure | Power supply | Dimensions | Air connections | Condensate drain | Refrigerant | CODE | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nm³/h | scfm | bar | f/V/Hz | W [mm] | L [mm] | H [mm] | |||||
| RDP 20 | 20 | 11,76 | 16 | 1/230/50 | 358 | 455 | 604 | G 3/8’’ BSP-F | EMD | R 134a | 2057023 |
| RDP 35 | 35 | 20,59 | 16 | 1/230/50 | 358 | 455 | 604 | G 3/8’’ BSP-F | EMD | R 134a | 2057024 |
| RDP 50 | 50 | 29,41 | 16 | 1/230/50 | 358 | 455 | 604 | G 3/4’’ BSP-F | EMD | R 134a | 2057025 |
| RDP 75 | 75 | 44,12 | 16 | 1/230/50 | 358 | 455 | 604 | G 3/4’’ BSP-F | EMD | R 134a | 2057026 |
| RDP 100 | 100 | 58,82 | 16 | 1/230/50 | 358 | 455 | 604 | G 3/4’’ BSP-F | EMD | R 134a | 2057027 |
| RDP 140 | 140 | 82,35 | 16 | 1/230/50 | 486 | 580 | 904 | G 1’’ BSP-F | EMD | R 134a | 2057028 |
| RDP 180 | 180 | 105,88 | 16 | 1/230/50 | 486 | 580 | 904 | G 1’’ BSP-F | EMD | R 134a | 2057029 |
| RDP 235 | 235 | 138,24 | 16 | 1/230/50 | 486 | 580 | 904 | G 1’’ BSP-F | EMD | R 134a | 2057030 |
| RDP 300 | 300 | 176,47 | 16 | 1/230/50 | 486 | 580 | 904 | G 1 1/2’’ BSP-F | EMD | R 134a | 2057031 |
| RDP 380 | 380 | 223,53 | 16 | 1/230/50 | 596 | 735 | 1,104 | G 1 1/2’’ BSP-F | EMD | R 134a | 2057032 |
| RDP 480 | 480 | 282,35 | 16 | 1/230/50 | 596 | 735 | 1,104 | G 1 1/2’’ BSP-F | EMD | R 134a | 2057033 |
| RDP 600 | 600 | 352,94 | 16 | 1/230/50 | 718 | 697 | 1,405 | G 2’’ BSP-F | EMD | R 134a | 2057034 |
| RDP 750 | 750 | 441,18 | 16 | 3/400/50 | 596 | 735 | 1,104 | G 2’’ BSP-F | EMD | R 134a | 2057035 |
| RDP 950 | 950 | 558,82 | 16 | 3/400/50 | 718 | 697 | 1,405 | G 2’’ BSP-F | EMD | R 134a | 2057036 |
| RDP 1150 | 1150 | 676,47 | 16 | 3/400/50 | 823 | 837 | 1,426 | G 2 1/2’’ BSP-F | EMD | R 134a | 2057037 |
| RDP 1300 | 1300 | 764,71 | 16 | 3/400/50 | 823 | 837 | 1,426 | G 2 1/2’’ BSP-F | EMD | R 134a | 2057038 |
| RDP 1500 | 1500 | 882,35 | 16 | 3/400/50 | 900 | 1,100 | 1,500 | G 2 1/2’’ BSP-F | EMD | R 134a | 2057039 |
| RDP 1900 | 1900 | 1.117,65 | 16 | 3/400/50 | 900 | 1,100 | 1,500 | DN80 | EMD | R 134a | 2057040 |
| RDP 2600 | 2600 | 1.529,41 | 14 | 3/400/50 | 1,200 | 1,250 | 1,750 | DN100 | EMD | R 134a | 2057041 |
| RDP 3400 | 3400 | 2.000,00 | 14 | 3/400/50 | 1,200 | 1,250 | 1,750 | DN100 | EMD | R 134a | 2057042 |
| RDP 4400 | 4400 | 2.588,24 | 14 | 3/400/50 | 1,200 | 1,250 | 1,750 | DN125 | EMD | R 134a | 2057043 |
| RDP 5400 | 5400 | 3.176,47 | 14 | 3/400/50 | 1,350 | 1,800 | 1,850 | DN125 | EMD | R 134a | 2057044 |
| RDP 6600 | 6600 | 3.882,35 | 14 | 3/400/50 | 1,350 | 1,800 | 1,850 | DN150 | EMD | R 134a | 2057045 |
| RDP 7200 | 7200 | 4.235,29 | 14 | 3/400/50 | 1,350 | 1,800 | 1,850 | DN150 | EMD | R 134a | 2057046 |
| RDP 8800 | 8800 | 5.176,47 | 14 | 3/400/50 | 1,350 | 1,800 | 1,850 | DN200 | EMD | R 134a | 2057047 |
| RDP 10800 | 10800 | 6.352,94 | 14 | 3/400/50 | 1,600 | 2,300 | 2,500 | DN200 | EMD | R 134a | 2057048 |
| RDP 13200 | 13200 | 7.764,71 | 14 | 3/400/50 | 1,600 | 2,300 | 2,500 | DN200 PN16 | EMD | R 134a | 2057049 |

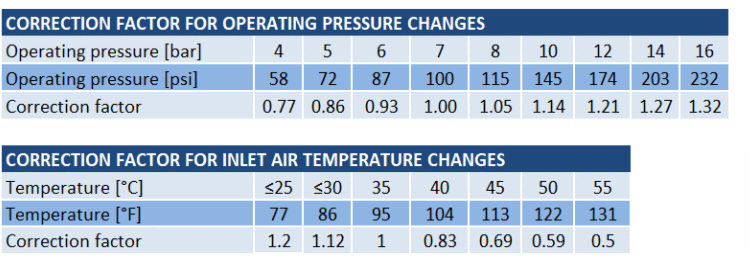

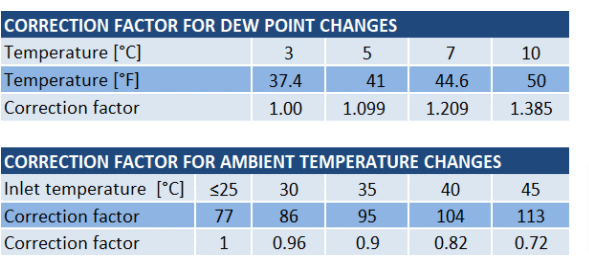

“Data refer to the following nominal condition: Ambient temperature of 25 °C, with inlet air at 7 barg and 35 °C and 3 °C pressure Dew Point (-20,5 °C atmospheric pressure Dew Point).
Max. working condition: Ambient temperature 45 °C, inlet air temperature 55 °C and inlet air pressure 16 barg (RDP 20-1900), 14 barg (RDP 2600-13200).
REMARK:
– Filters are not included.”
Due to constant engineering improvements data is subject to change
