A-DRY BM
Heatless Regeneration Adsorption Compressed Air Dryers
| Operating pressure | 4 to 16 bar |
INCLUDED
– pre-filter with automatic drain AOK 16B and manometer PDI 16 (are not mounted),
– after-filter with manual drain MCD and manometer PDI 16 (are not mounted),
– controler includes standard connection for dew point senzor (sensor is not included).

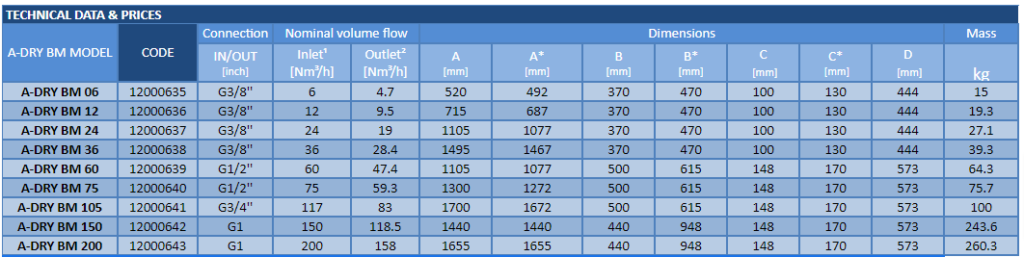

(¹) Refers to 1 bar(a) and 20 °C at 7 bar operating pressure , inlet temperature 35 °C and pressure dew point at outlet —40 °C (²) Outlet flow refers to typical assumption during regeneration phase for operating at nominal inlet flow conditions. Outlet flow includes average air losses of approximately 17,3 %. * If dryer is supplied without inlet filter compressed air class 1 (ISO 8753-1) for solid particles and oil should be provided to the inlet of the dryer.
